getting started with tonari

watch our short demo and walkthrough video to learn more about product features, use cases, and tips for setting up tonari

request a quote
or consultation

request a quote
or consultation

purchase from $24,999
rental from $1299 / month

shipping worldwide

tonari is now available in more than 40 countries across Asia, Europe, Oceania, and North America, with more coming soon.

portals can be delivered and setup in 4~8 weeks in Japan and 6~12 weeks in other countries, depending on the physical locations and spaces, network readiness, and other considerations.

where we ship

where we ship

where we ship

two or more portals

two portals are needed to connect and create one seamless space.

if you have many portals, you can also use location hopping to instantly travel between them. we recommend an even number (4, 6 10…) so they can be always-connected without loneliness or downtime.

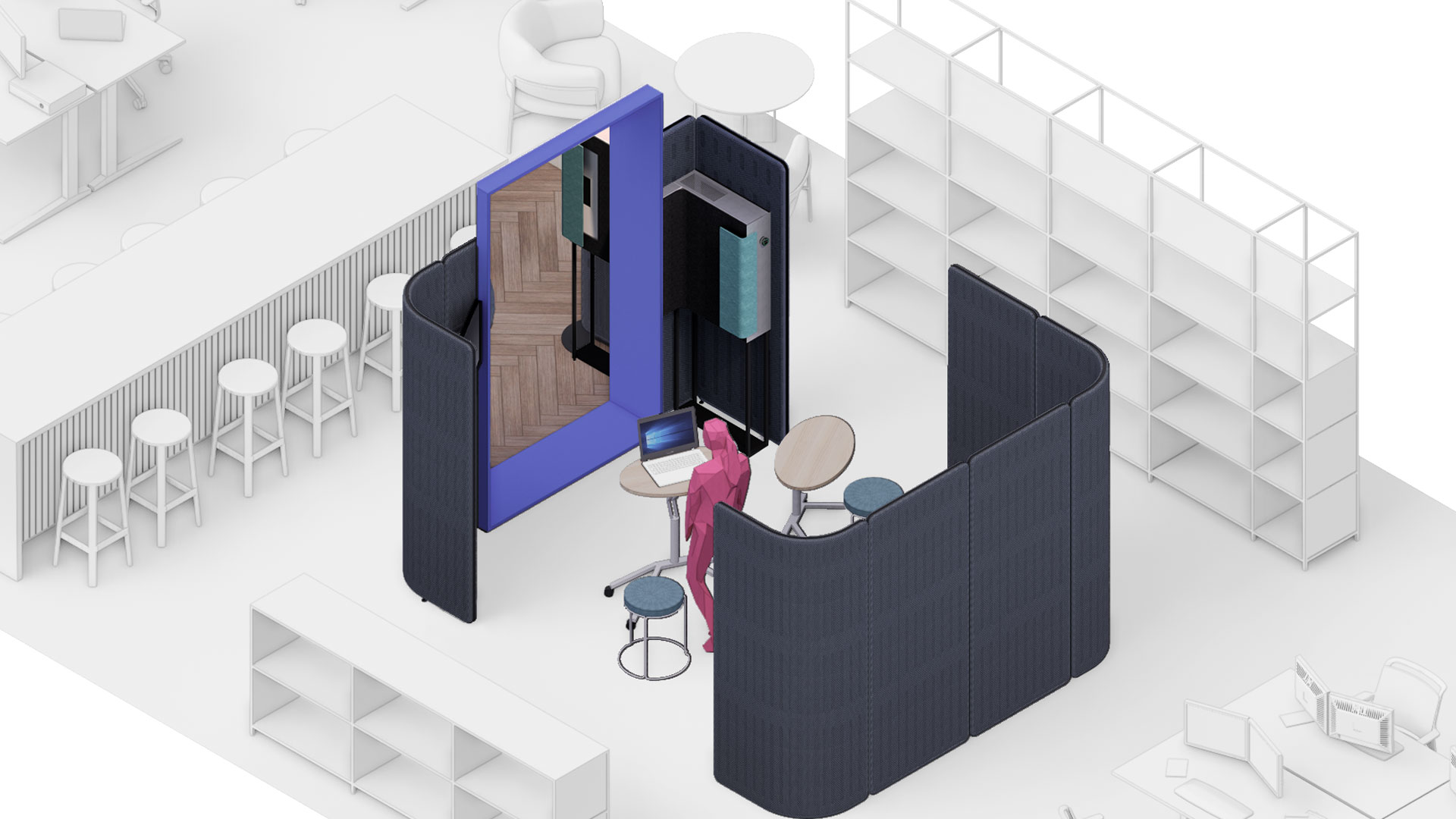

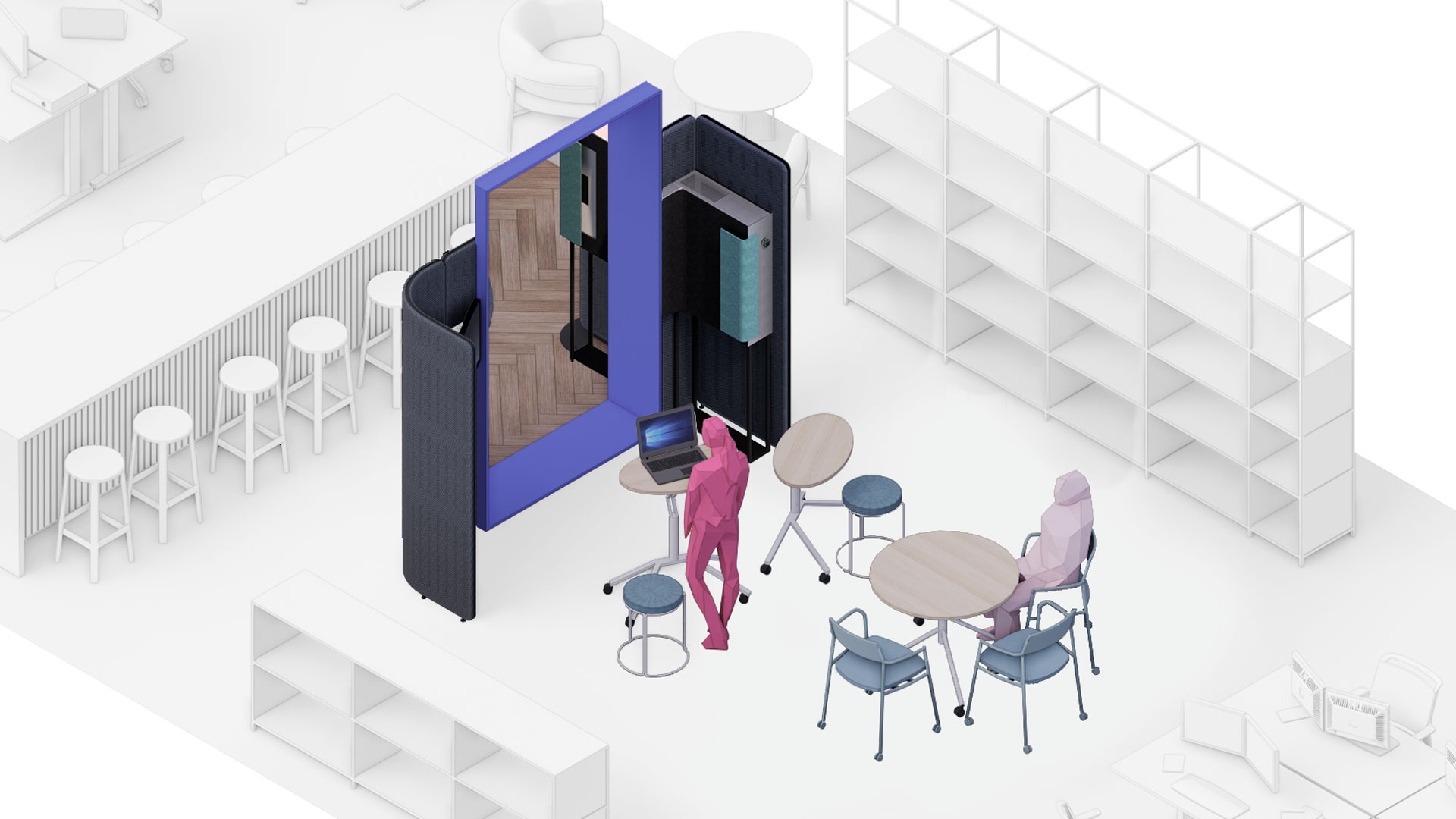

choose a space and setup

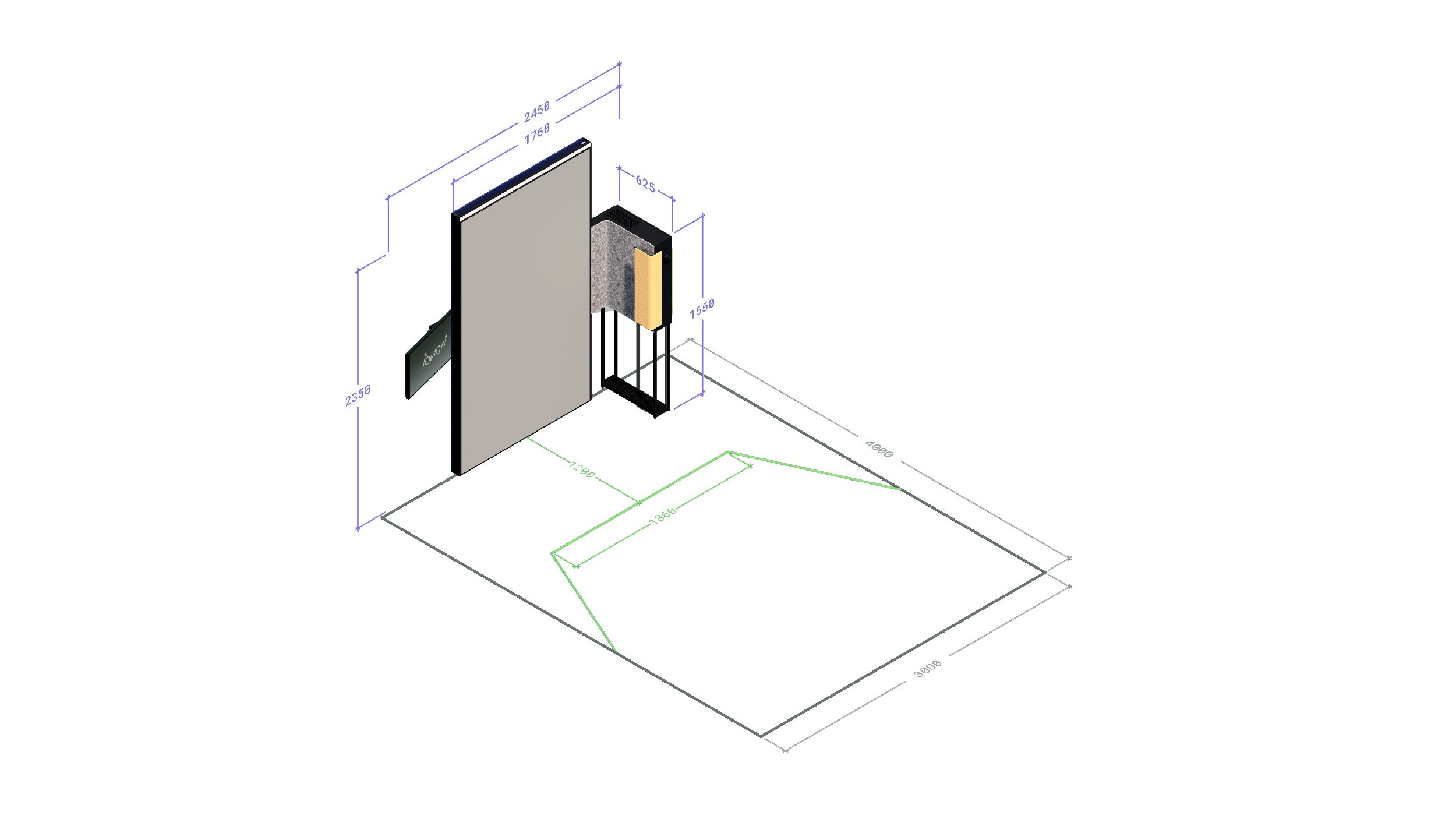

tonari can be setup on a wall, in a room, or free-standing, and requires about 3m x 3m of space for effective use.

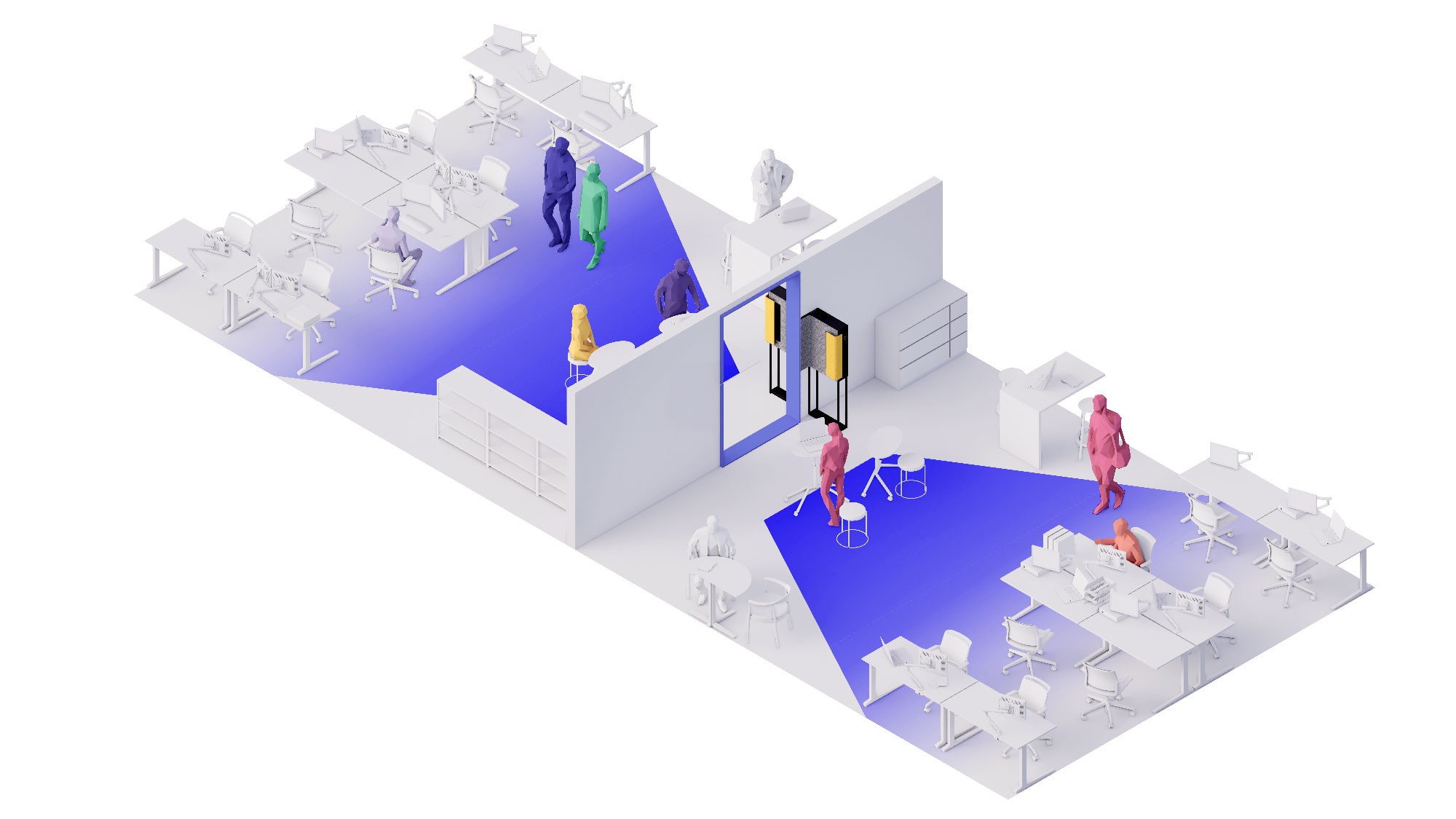

choosing the best space requires considering the camera visibility of the active and passive zones, people flow, acoustics, and other aspects of the environment.

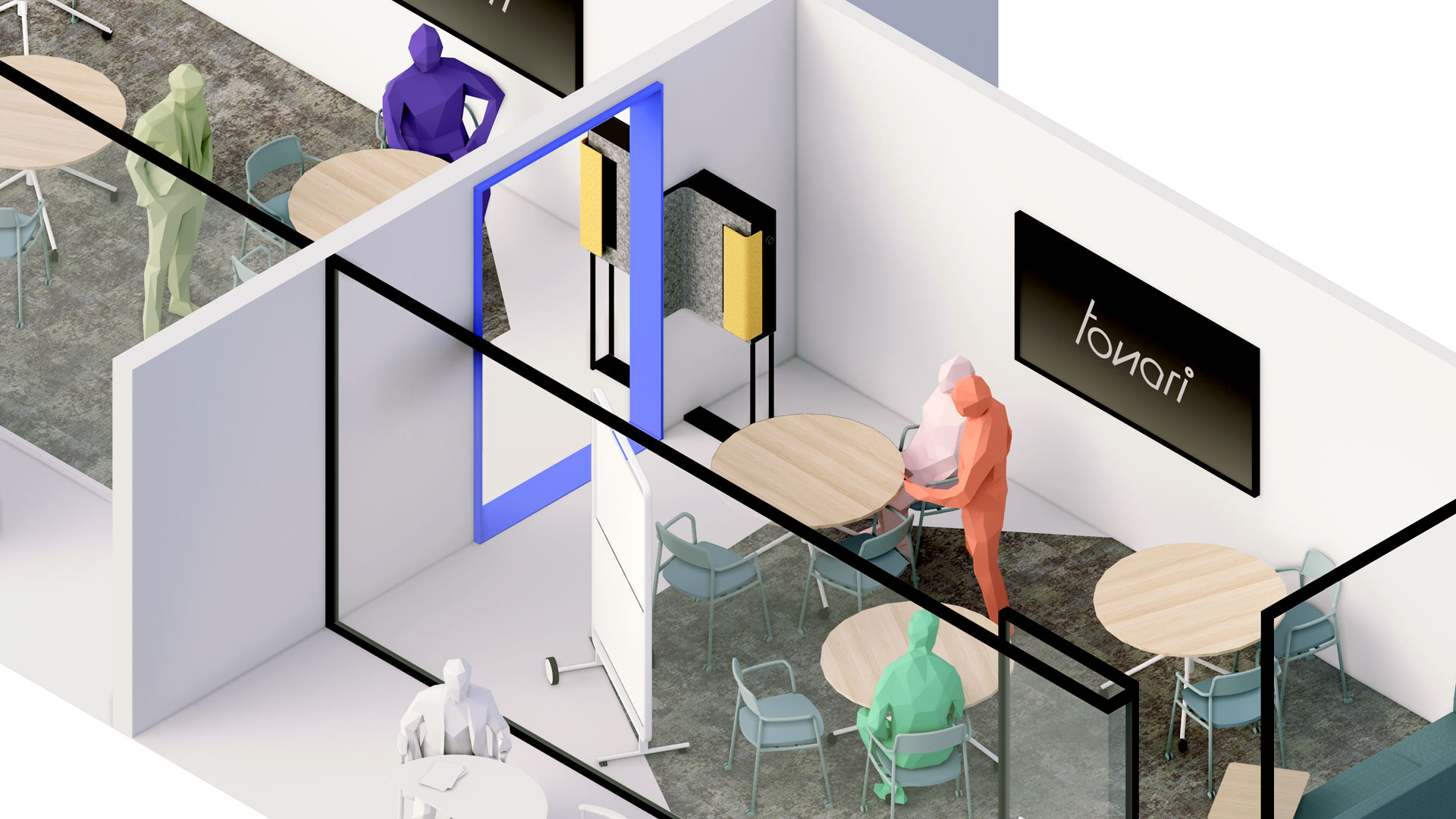

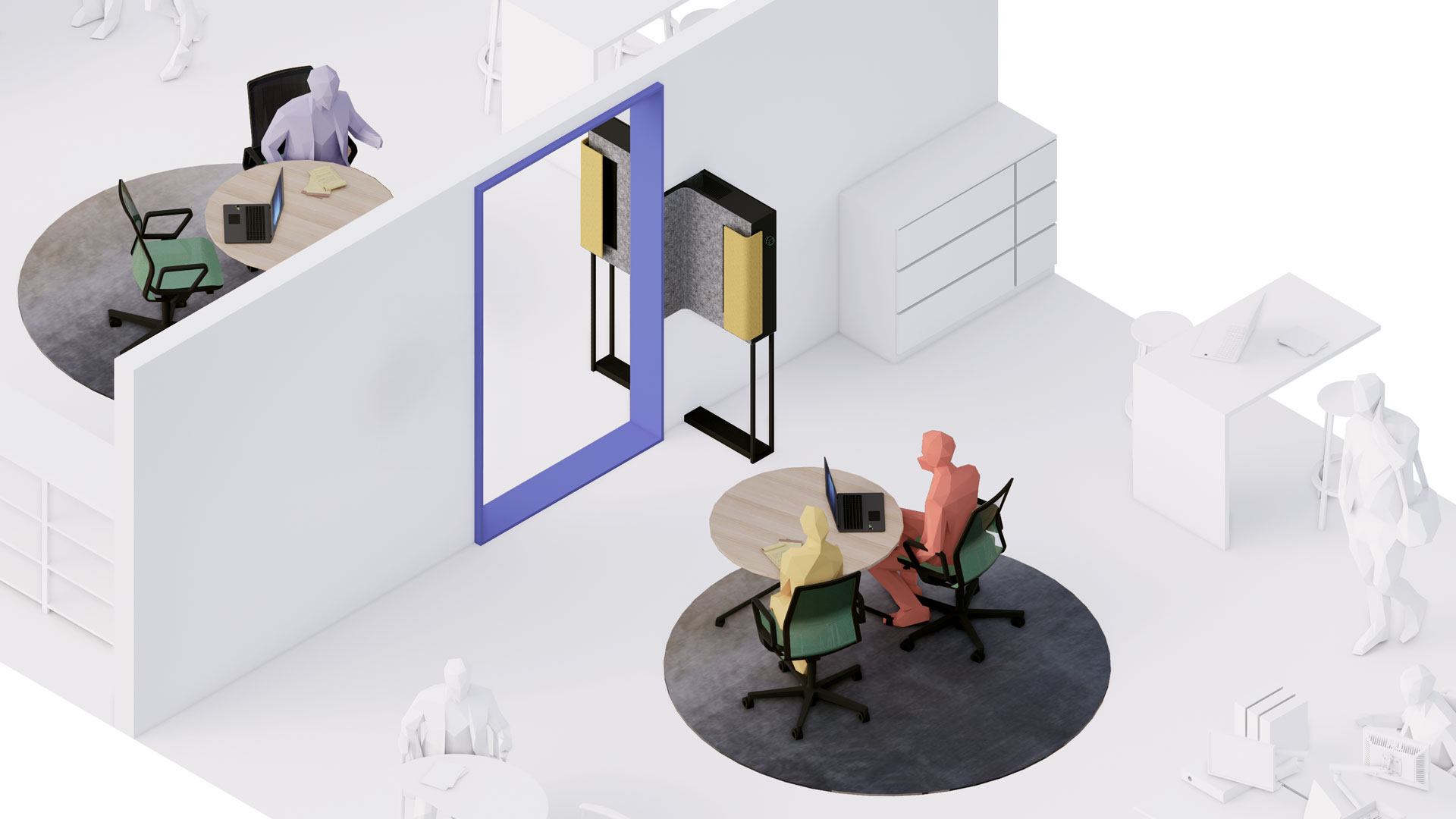

with the right furniture and space, tonari can be used for social collisions, open collaboration, private conversations, or various-sized meeting and project rooms.

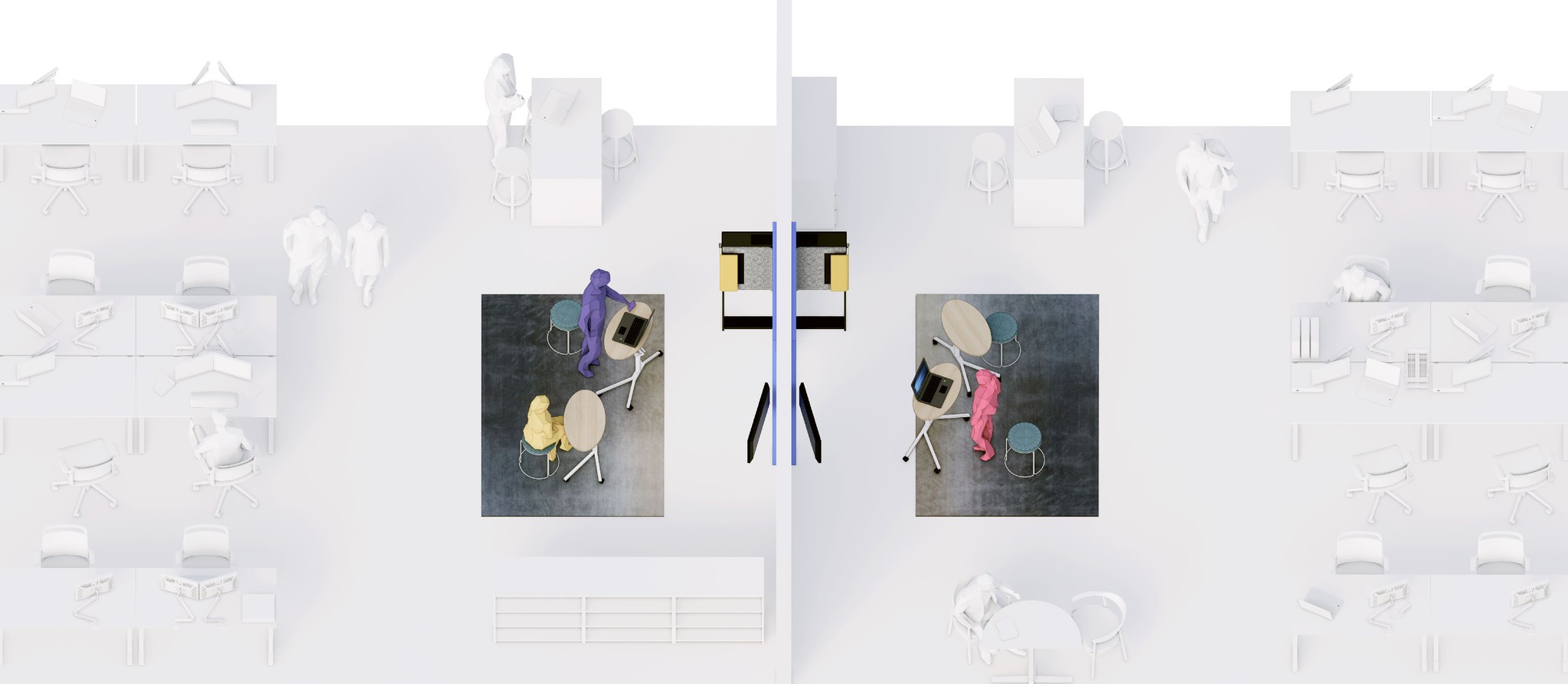

our design team is ready to help. when you contact us, we’ll support you to choose and measure your spaces, sketch designs and floor plans, and plan your delivery.

network requirements

tonari requires 60Mbps on a high-speed internet line with stable delay characteristics. we typically recommend a business fiber plan with at least 500Mbps symmetrical upload and download speeds.

testing your internet for tonari is easy if you already have wired access to your network. depending on local availability, we can also help you research and choose an internet service provider with adequate speed and quality.

software and support

tonari portals run on tonari's own software, which is tightly integrated with our hardware. when purchasing tonari, an additional software subscription is required.

tonari hardware includes a 2-year standard warranty, with onsite repairs in limited regions. online support and troubleshooting is included with your software subscription.

if setting up tonari with a third party service for hybrid calls such as Zoom, Meet, Teams or Webex, you may need additional hardware and software licenses.

security and privacy

tonari is fully encrypted peer-to-peer via WireGuard, which means your connection is totally secure and private, with no communication passing through any proxies or third-party servers. tonari can also run over private networks in high-security or mission-critical scenarios.

still have questions?

still have questions?

product
specifications

dimensions

dimensions

height: 2400mm
width: 2450mm
depth: 650mm
weight: 96kg

height: 2400mm
width: 2450mm
depth: 650mm
weight: 96kg

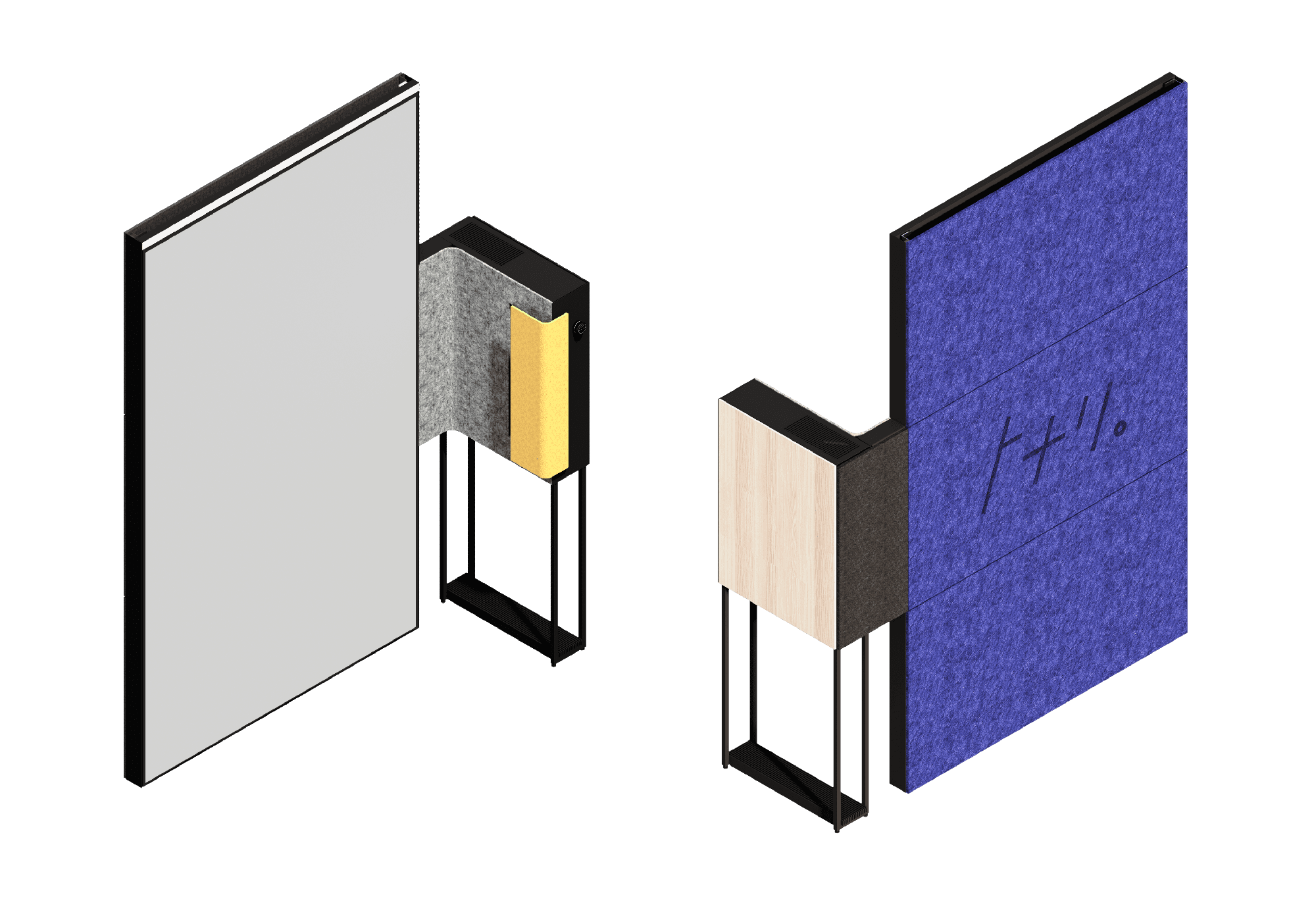

colors & finishes

colors & finishes

white or black metal
fabrics in 10+ colors

white or black metal
fabrics in 10+ colors

screen

screen

3.29m² screen area
1400mm width by 2350mm height
3840-by-2160 resolution (4K)
5000lm laser projection
high contrast screen

3.29m² screen area
1400mm width by 2350mm height
3840-by-2160 resolution (4K)
5000lm laser projection
high contrast screen

camera

camera

6.4MP in-screen camera
true eye-contact
70° field-of-view

6.4MP in-screen camera
true eye-contact
70° field-of-view

video

video

3K resolution
60 frames-per-second
<100ms glass-to-glass latency

3K resolution
60 frames-per-second
<100ms glass-to-glass latency

lighting

lighting

integrated linear light
flicker-free, dimmable and temperature-adjustable
2000K~6500K / 4500lm at 4000K

integrated linear light
flicker-free, dimmable and temperature-adjustable
2000K~6500K / 4500lm at 4000K

sound

sound

48khz transparent audio
microphones w/ full dynamic range
advanced noise reduction
context-aware automatic gain control
high-fidelity stereo speakers

48khz transparent audio
microphones w/ full dynamic range
advanced noise reduction
context-aware automatic gain control
high-fidelity stereo speakers

screen sharing

screen sharing

32-inch secondary display
customizable to larger sizes
wired sharing via HDMI
wireless sharing via AirPlay, Miracast, and Chromecast (optional)
supports Windows, Mac, Chrome, iOS, and Android devices

32-inch secondary display
customizable to larger sizes
wired sharing via HDMI
wireless sharing via AirPlay, Miracast, and Chromecast (optional)
supports Windows, Mac, Chrome, iOS, and Android devices

hybrid calls

hybrid calls

optional integration with third-party video calls via secondary display
support for Microsoft Teams, Google Meet, Cisco Webex, Zoom, and more
additional hardware and software licenses required

optional integration with third-party video calls via secondary display
support for Microsoft Teams, Google Meet, Cisco Webex, Zoom, and more
additional hardware and software licenses required

security

security

fully encrypted peer-to-peer transmission over WireGuard

fully encrypted peer-to-peer transmission over WireGuard

energy

energy

500w average
900w maximum
low-power sleep mode

500w average
900w maximum
low-power sleep mode

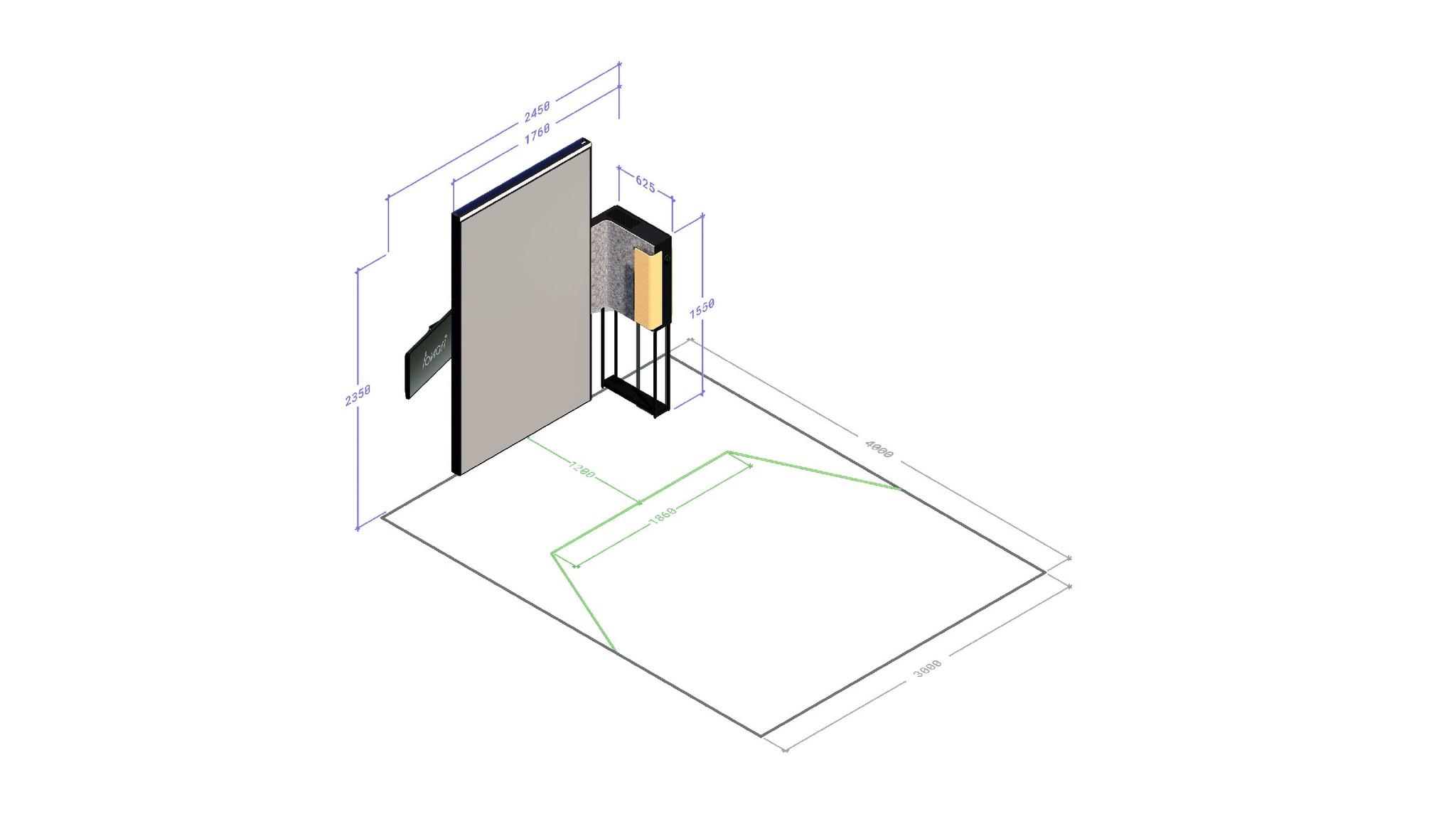

installation requirements

installation requirements

2500mm width along anchoring wall or free-standing mono option
3000mm by 3000mm floor space recommended
integrated linear light or balanced directed lighting via embedded fixtures
carpeting, acoustic ceiling, wall panels, or similar acoustic treatments
furniture selected for visible area and ergonomic use

2500mm width along anchoring wall or free-standing mono option
3000mm by 3000mm floor space recommended
integrated linear light or balanced directed lighting via embedded fixtures
carpeting, acoustic ceiling, wall panels, or similar acoustic treatments
furniture selected for visible area and ergonomic use

network requirements

network requirements

60Mbps on a line with stable delay characteristics
business fiber or similar with symmetrical 500Mbps up and down recommended
SLA with 99.9% uptime

60Mbps on a line with stable delay characteristics
business fiber or similar with symmetrical 500Mbps up and down recommended
SLA with 99.9% uptime
